Cube Views

Cube Views provide an elegant way to:

• Define a clean view on top of your data models.
• Tell Embeddable and Cube which join paths to use and when.
• Enforce that row-level security is always applied consistently.

Source: Cube's Official Docs (opens in a new tab)

Why use Cube Views?

Cube data models (known as “cubes”) allow you to define user-friendly entities, measures and dimensions and the relationships between them. This works well when you’re getting started, but as you start to build out more and more models you can quickly start to hit a number of problems:

• Clutter: Embeddable starts to show dozens of models in the builder and it can be hard for dashboard builders to know where to start from.
• Ambiguous join paths: Models are connected via multiple join paths and Cube doesn’t know which path to take.
• Enforcing row-level security: Defining row-level security at the cube level means that row-level security is only applied when queries use that cube. You therefore find yourself defining row-level security repeatedly in every model.

Cube Views solve these problems:

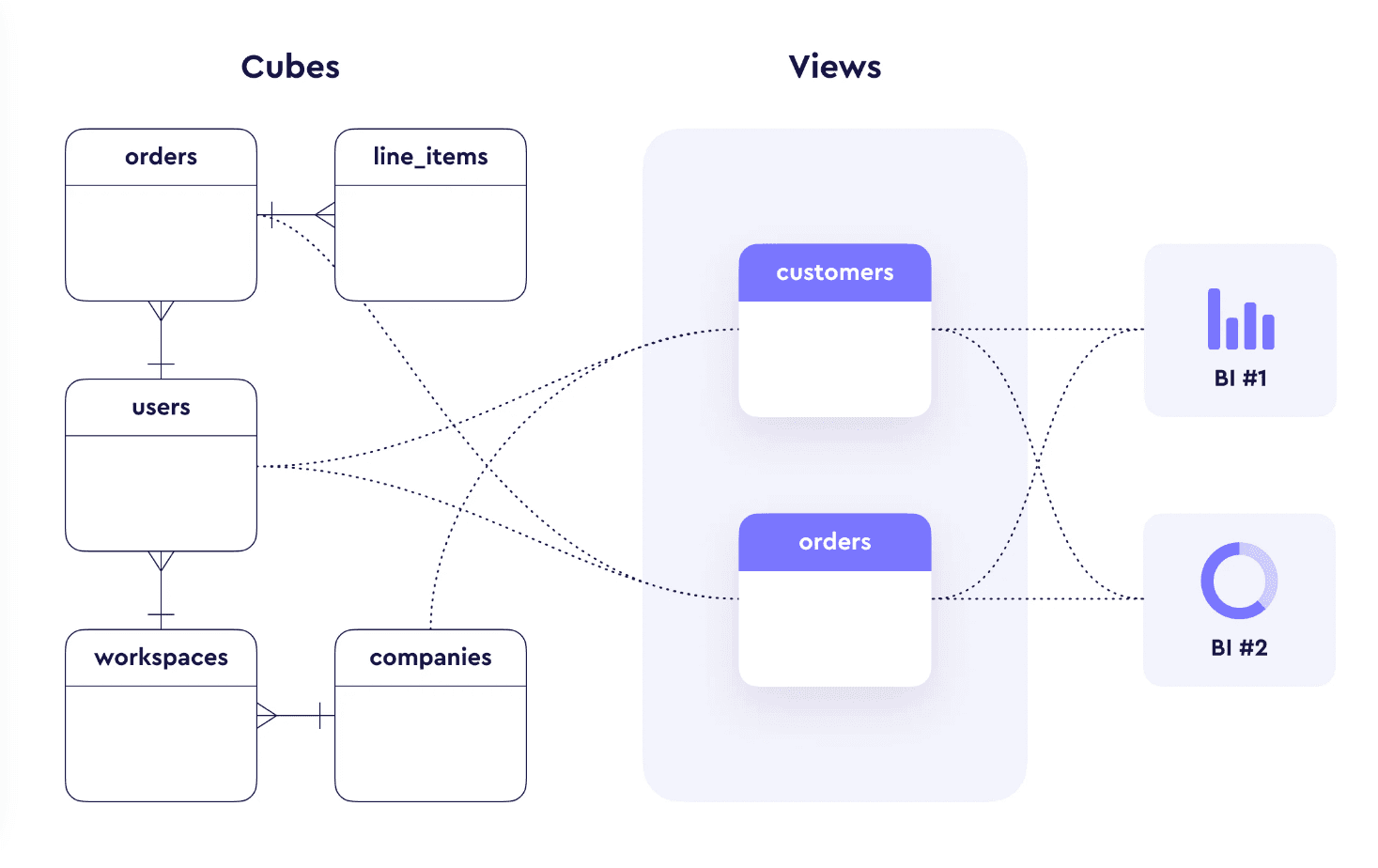

• Clutter: Views allow you to represent different subsets of your connected Cubes graph as individual Views (e.g. you could have just a Marketing view, a Sales View and an Admin view, each with their own individualised terminology)
• Ambiguous join paths: Views represent a subset of the connected graph and thus allow you to specify exactly which join path to use for any measure or dimension that is queried using that view.
• Enforcing row-level security: Views allow you to define view-level access policies that can significantly simplify your row-level security. You define your row-level security rules once at the view-level, and you can be confident that they will always be applied for any query.

How to define Cube Views

The simplest way to get started with Cube Views is to define a <view-name>.cube.yml file (e.g. customer_view.cube.yml) like so:

views:
  - name: customer_view
    cubes:
      - join_path: customers
        prefix: true
        includes: "*"

      - join_path: orders
        prefix: true
        includes: "*"

      - join_path: products
        prefix: true
        includes: "*"

This tells Embeddable that it should present a model called “Customer View” that contains all the dimensions and measures from the customers, orders and products models.

You can then mark those models as public: false in your codebase so that the models themselves will no longer appear in Embeddable:

cubes:
  - name: customers
    public: false
    ...

cubes:
  - name: orders
    public: false
    ...

cubes:
  - name: products
    public: false

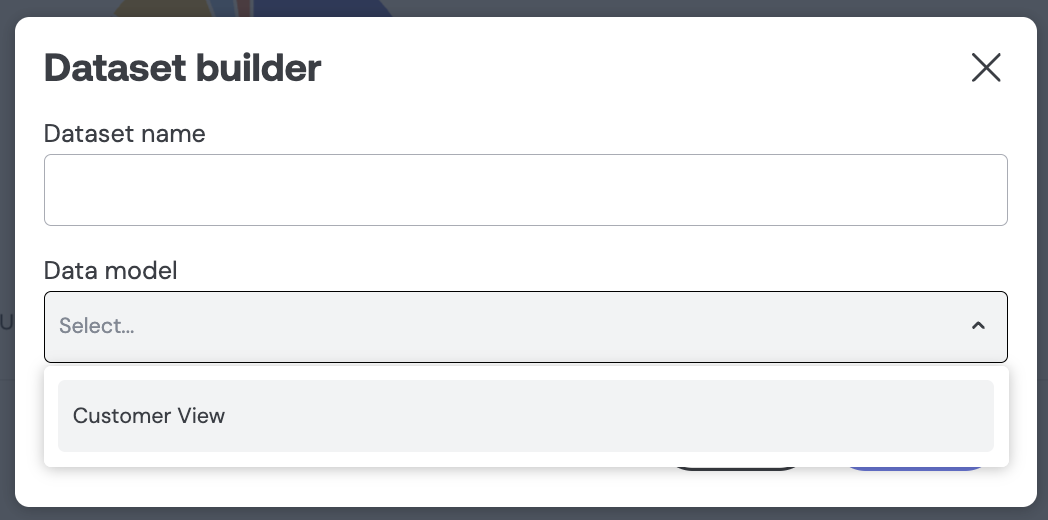

Meaning you end up with a much cleaner list of models in Embeddable:

Example Views

A simple Cube View might look like this:

#
# customer_view.cube.yml
#
views:
  - name: customer_view
    title: Customer View
    cubes:
      - join_path: customers
        prefix: true
        includes: "*"

      - join_path: orders
        prefix: true
        includes: "*"

      - join_path: products
        prefix: true
        includes: "*"

Things to notice:

• views Even though views have the same file structure as cubes (i.e. their file must end in .cube.yml), the root of the file starts with views instead of cubes.
• name This is the unique name used internally by Embeddable and Cube to reference this View. Updating it once it’s in use can potentially break your dashboards.
• title This is an optional, human-readable name that appears in the UI. You can change it anytime without impacting the underlying logic.
• cubes This lists the cubes that you want to give access to in your View.
• join_path In its simplest form this is the name of the cube to include in the View, but you can use dot-notation to tell Cube which join path to use when querying members (dimensions and measures) of this model. Learn more here.
• prefix Setting this to true will prefix the name of all the members (dimensions and members) of this model with the model name (e.g. turning created_at in products into products_created_at). This is quite useful as it avoids conflicts where two models have members with the same name (e.g. customers and products may both have a measure named count). You can also solve this conflict problem by defining an alias. Learn more here.
• includes this lists the members (dimensions and measures) that you want to include in the View. "*" means include all. Below we show how to explicitly include specific members.

Includes

When describing which members (dimensions and measures) to include you can either use “*”, as shown in the customers section below, to include all its members. Or you can explicitly describe each member one by one, as shown in the orders and products sections below:

views:
  - name: customer_view
    cubes:
      - join_path: customers
        prefix: true
        includes: "*"

      - join_path: orders
        prefix: true
        includes:
          - id
          - created_at

      - join_path: products
        prefix: true
        includes:
          - id
          - name
          - size
          - count

Alias and title

By default Cube will derive the name and title, for each member (dimension and measure) in the View, using the name and title as defined in the Cube it is referencing. But if you want more control over the name and title to use, you can define these explicitly using alias and title as shown in the orders and products sections below:

views:
  - name: customer_view
    cubes:
      - join_path: customers
        prefix: true
        includes: "*"

      - join_path: orders
        includes:
          - name: created_at
            alias: orders_created_at
            title: 'Order date'

      - join_path: products
        includes:
          - name: name
            alias: products_name
          - name: size
            alias: products_size
            title: 'Size of the product'
          - name: count
            alias: products_count

This can be particularly useful if you want to name your members (dimensions and measures) differently for different audiences. You can define a different view for each audience and give each member different titles.

Join paths

The join_path parameter uses dot notation (e.g. <cube1>.<cube2>.<cube3>) to define the joins that should be used when accessing particular members (dimensions and measures) within the View.

E.g:

views:
  - name: customer_view
    cubes:
      - join_path: customers
        prefix: true
        includes: "*"

      - join_path: customers.orders
        prefix: true
        includes: "*"

      - join_path: customers.orders.products
        prefix: true
        includes: "*"

In this example:

• All members of the customers cube will be accessed directly
• All members of the orders cube must include a direct join from customers , even if no members from the customers cube are requested.
• All members of the products cube must include a join from customers via orders even if only members of the products cube are requested.

E.g a query requesting just the product_count would generate the following SQL:

SELECT
  count(distinct "products".id) "customer_view__products_count"
FROM
  public.customers AS "customers"
  LEFT JOIN public.orders AS "orders" ON "customers".id = "orders".customer_id
  LEFT JOIN public.products AS "products" ON "orders".product_id = "products".id
LIMIT
  100

This can be particularly useful if:

1. Your row-level security has been defined in the customers cube model, and you want to make sure that that row-level security is always applied.
2. You have defined multiple join paths from customers to products, but you want Cube to take the path that goes through orders.

Excludes

If you use includes: '*' you can also use excludes to exclude particular members (dimensions and measures) from your View, like so:

views:
  - name: customer_view
    cubes:
      - join_path: customers
        prefix: true
        includes: "*"
        excludes:
          - id

Access policies

Access policies allow you to apply both member_level and row_level security to your Views based on roles (i.e. control which columns and rows are visible to which end-users). This is a nice alternative to cube-level row-level security, as:

1. It can be defined in one place on the View (rather than having to define it in each cube model)
2. It can also allow you to control which members (dimensions and measures) are visible.

views:
  - name: customer_view
    cubes:
      - join_path: customers
        prefix: true
        includes: "*"

    access_policy:
      - role: 'default'
        member_level:
          includes: "*"
        row_level:
          filters:
            - member: customers_id
              operator: equals
              values: ["{ securityContext.user_id }"]

The above access_policy, for example, gives every end-user with the “default” role, access to all members of the customers_view view, but it restricts them to only access the rows whose customers_id is equal to a given user_id in the securityContext.

Learn more here (TODO).
